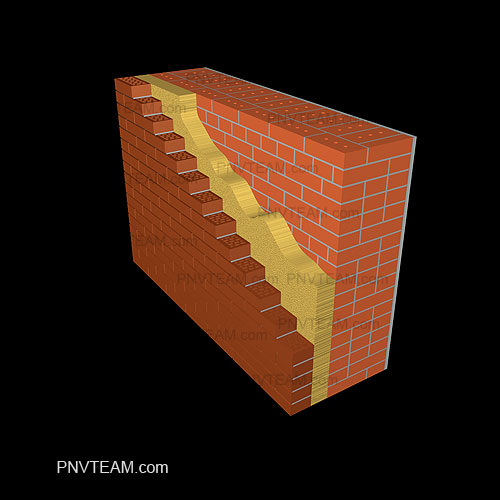

Brick, Clinker and Mineral Wool: A Warm Wall with Facing Masonry
Brick, Clinker and Mineral Wool is best assessed as part of insulation and facade performance, not as an isolated purchase or finishing choice. Visible quality is only the final layer of this topic. The lasting result depends on how the underlying design, materials, workmanship and future maintenance are coordinated.
The focus is a warm wall with facing masonry. The whole arrangement must be checked rather than assuming that one material or experienced installer will compensate for unresolved interfaces. Clinker’s density and low water absorption do not remove the need for structural support, movement joints, cavity drainage and careful mortar selection.
PNV first addressed this issue as a construction crew. Since 2021, PNV Construction Group has coordinated crews, private contractors, specialist companies and individual experts.
Why the detail must be considered as a system
Insulation performs only as part of a complete wall or roof build-up. Substrate condition, continuity, moisture movement, wind protection, fixings and junctions matter as much as nominal thickness. In construction practice, the important question is how the chosen solution behaves after the first season, after finishes are closed and during routine service.
What to check before work begins
- Confirm the substrate is stable, dry and suitable for the system.
- Calculate or verify the required insulation thickness for the whole assembly.
- Fit boards or batts tightly without open joints or compression.
- Treat window reveals, plinths, parapets and roof junctions as separate details.
- Protect mineral wool from wind washing and construction moisture.
Each check should be supported by drawings, photographs, product data or measurable tolerances before the work is concealed.
Common failure patterns
Typical problems include wet insulation enclosed behind finishes; facade systems installed on weak or contaminated substrates; and missing reinforcement around openings. Intermediate inspection is therefore more valuable than relying on a purely visual final check.
Inspection, handover and maintenance
A useful handover includes photographic records of the insulation layer, checks of junction continuity and, where appropriate, a thermal imaging inspection under suitable weather conditions. These questions are cheapest to resolve before procurement and before concealed work begins.
PNV connects this subject with thermal imaging inspection. Further project information is available through passive house construction and PNV portfolio.
