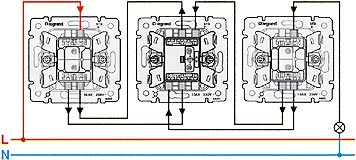

Intermediate Switches: Controlling Lights from Three or More Locations
Intermediate Switches is best assessed as part of electrical control and switching, not as an isolated purchase or finishing choice. The right decision is not simply the product with the best advertised figure. It is the solution that fits the building, can be installed correctly and remains understandable to maintain.
The focus is controlling lights from three or more locations. The whole arrangement must be checked rather than assuming that one material or experienced installer will compensate for unresolved interfaces. The circuit topology must be chosen before cabling: these mechanisms require additional conductors and precise identification at every control point.
From a good idea to a reliable result
A switch or control point is only the visible end of an electrical circuit. Reliable operation depends on the cable arrangement, protection devices, conductor identification, load type and the way the user actually moves through the room. A robust specification links the visible component to the substrate, adjacent systems, environmental exposure and the sequence of work.
Practical acceptance criteria
- Test every switching combination before boxes and walls are closed.
- Leave enough depth and access for future replacement of mechanisms.
- Define the lighting or equipment groups before cables are installed.
- Confirm the number of control points and the required switch type.
- Coordinate switch positions with doors, furniture and circulation routes.
Each check should be supported by drawings, photographs, product data or measurable tolerances before the work is concealed.
Risks hidden behind the finished surface
Typical problems include unidentified conductors that make later fault-finding difficult; indicator lamps causing LED flicker or unwanted glow; and switches hidden behind doors, furniture or joinery. They often appear only after seasonal movement, moisture or routine use, when correction is significantly more disruptive.
Keeping the solution serviceable
Before handover, every operating combination should be tested under the actual load, the distribution board should be labelled, and photographs of concealed cable routes should be retained. A reliable result is one that can be inspected and maintained without guesswork.
