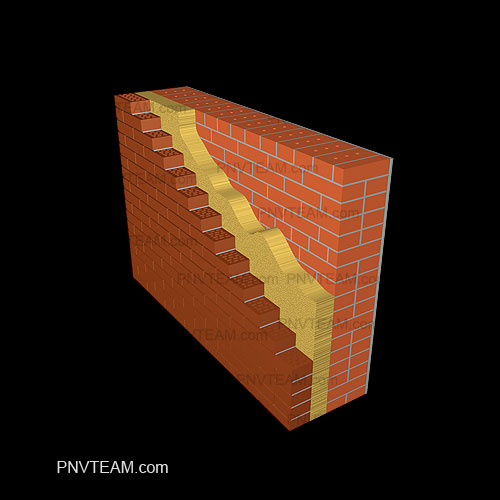

Facing Brick, Mineral Wool and Common Brick: Avoiding a Wet Facade
Facing Brick, Mineral Wool and Common Brick is best assessed as part of insulation and facade performance, not as an isolated purchase or finishing choice. Visible quality is only the final layer of this topic. The lasting result depends on how the underlying design, materials, workmanship and future maintenance are coordinated.
The focus is avoiding a wet facade. The whole arrangement must be checked rather than assuming that one material or experienced installer will compensate for unresolved interfaces. Facing masonry is exposed from both sides during construction, so water entry, cavity cleanliness and support details should be inspected before the wall is closed.
Within PNV Construction Group, the relevant crews, private contractors and specialist companies work to shared drawings and acceptance criteria.
Why the detail must be considered as a system
Insulation performs only as part of a complete wall or roof build-up. Substrate condition, continuity, moisture movement, wind protection, fixings and junctions matter as much as nominal thickness. In construction practice, the important question is how the chosen solution behaves after the first season, after finishes are closed and during routine service.
What to check before work begins
- Confirm the substrate is stable, dry and suitable for the system.
- Calculate or verify the required insulation thickness for the whole assembly.
- Fit boards or batts tightly without open joints or compression.
- Treat window reveals, plinths, parapets and roof junctions as separate details.
- Protect mineral wool from wind washing and construction moisture.
Each check should be supported by drawings, photographs, product data or measurable tolerances before the work is concealed.
Common failure patterns
Typical problems include wet insulation enclosed behind finishes; facade systems installed on weak or contaminated substrates; and missing reinforcement around openings. They often appear only after seasonal movement, moisture or routine use, when correction is significantly more disruptive.
Inspection, handover and maintenance
A useful handover includes photographic records of the insulation layer, checks of junction continuity and, where appropriate, a thermal imaging inspection under suitable weather conditions. The aim is not complexity, but clear responsibility for details that determine safety and service life.
PNV connects this subject with thermal imaging inspection. Further project information is available through passive house construction and PNV portfolio.
